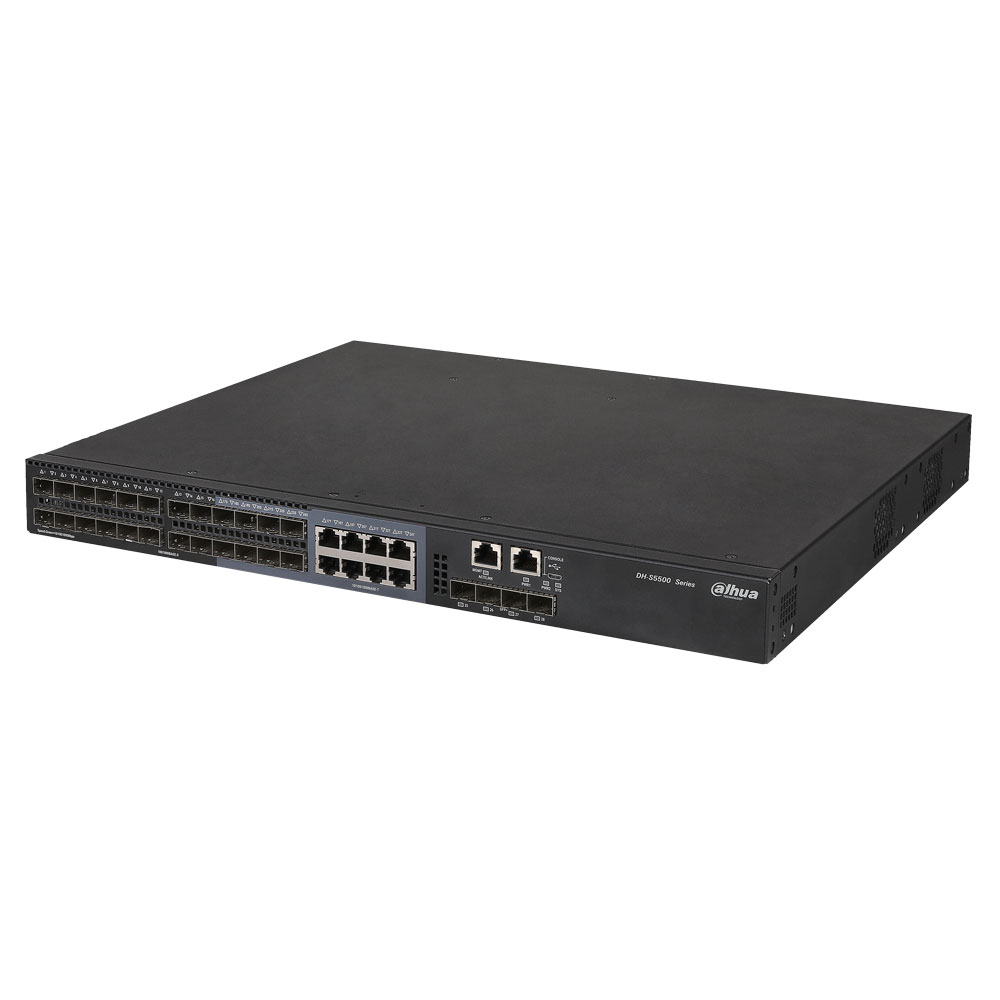

Dahua S5500-24GF4XF-E

L2+ upravljivi agregacioni switch

• L2+ upravljivi 36-portni switch
• 8 x 10/100/1000 Mbps ports (combo)
• 16 x 100/1000 Mbps Base-X ports + 8 x 100/1000 Mbps Base-X ports (combo)
• 4 x 1/10 Gbps Base-X port
• Konzolni port
• Intelligent Resilient Framework 2
• Switching Capacity 336Gbps
• Packet Forwarding Rate 96Mpps
• Packet Buffer Memory 12 Mbit
• MAC Table Size 16K
• VLAN Amount 4094 Entries
• ARP Table 1K Entries
• IPv4 Routing Table 1024 Entries
• QoS Queue 8 Entries
• Jumbo Frame 10,000 Byte
• ACL Table - 1024 Entries (IPV4), 512 Entries (IPV6)
• VLAN - Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
• DHCP - DHCP client, DHCP snooping, DHCP snooping option82, DHCP relay, DHCP server, DHCP auto-config
• Port Aggregation -1GE/10GE port aggregation, Dynamic aggregation, Static aggregation, Cross-device aggregation
• Mirroring - Port mirroring, RSPAN
• Multicast - IGMP Snooping/MLD Snooping, Multicast VLAN
• Dimenzije 440mm × 360mm × 43.6mm
• Masa 6kg
• Napajanje 100-240Vac do 48W
• Opseg radne temeprature 0°C do 45°C
